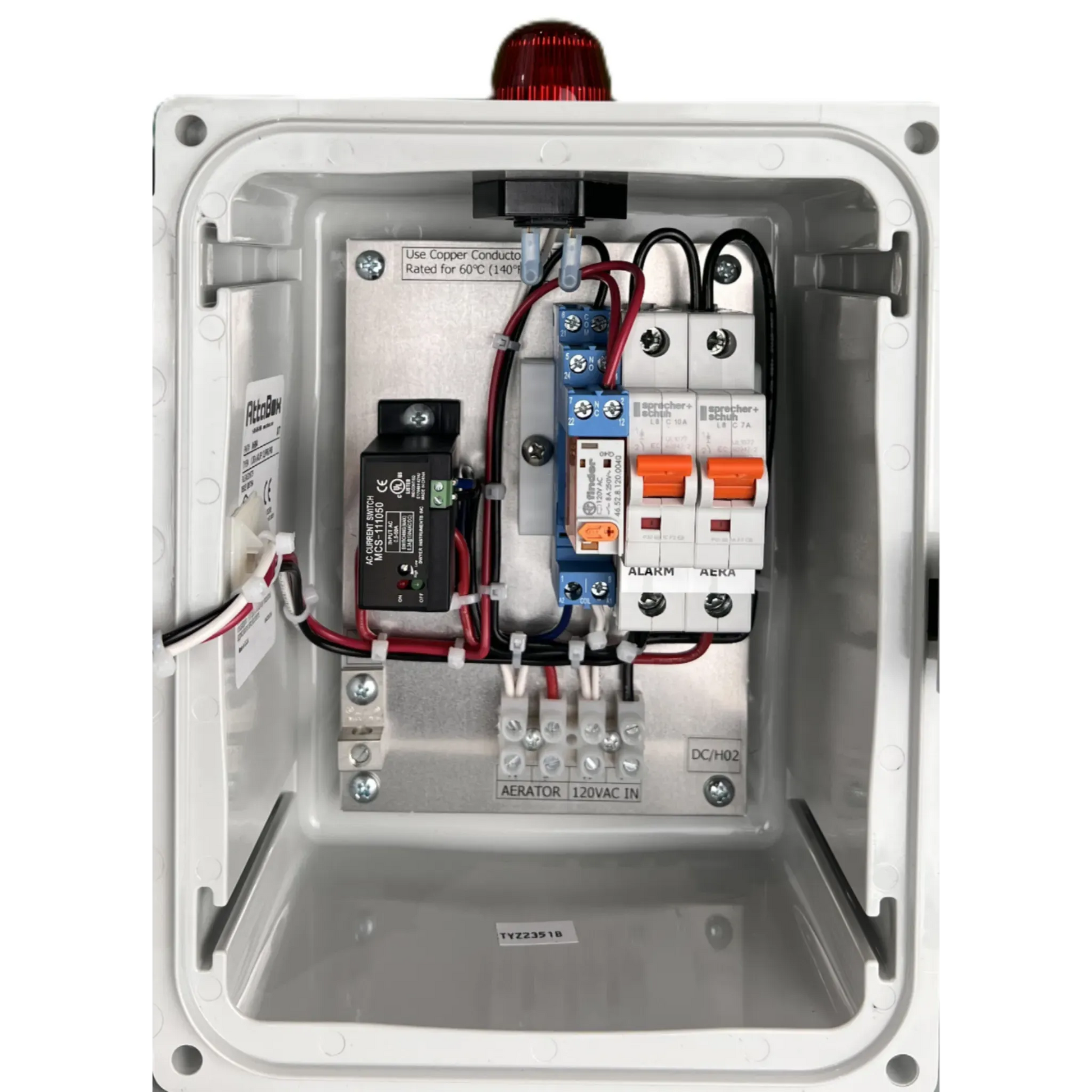

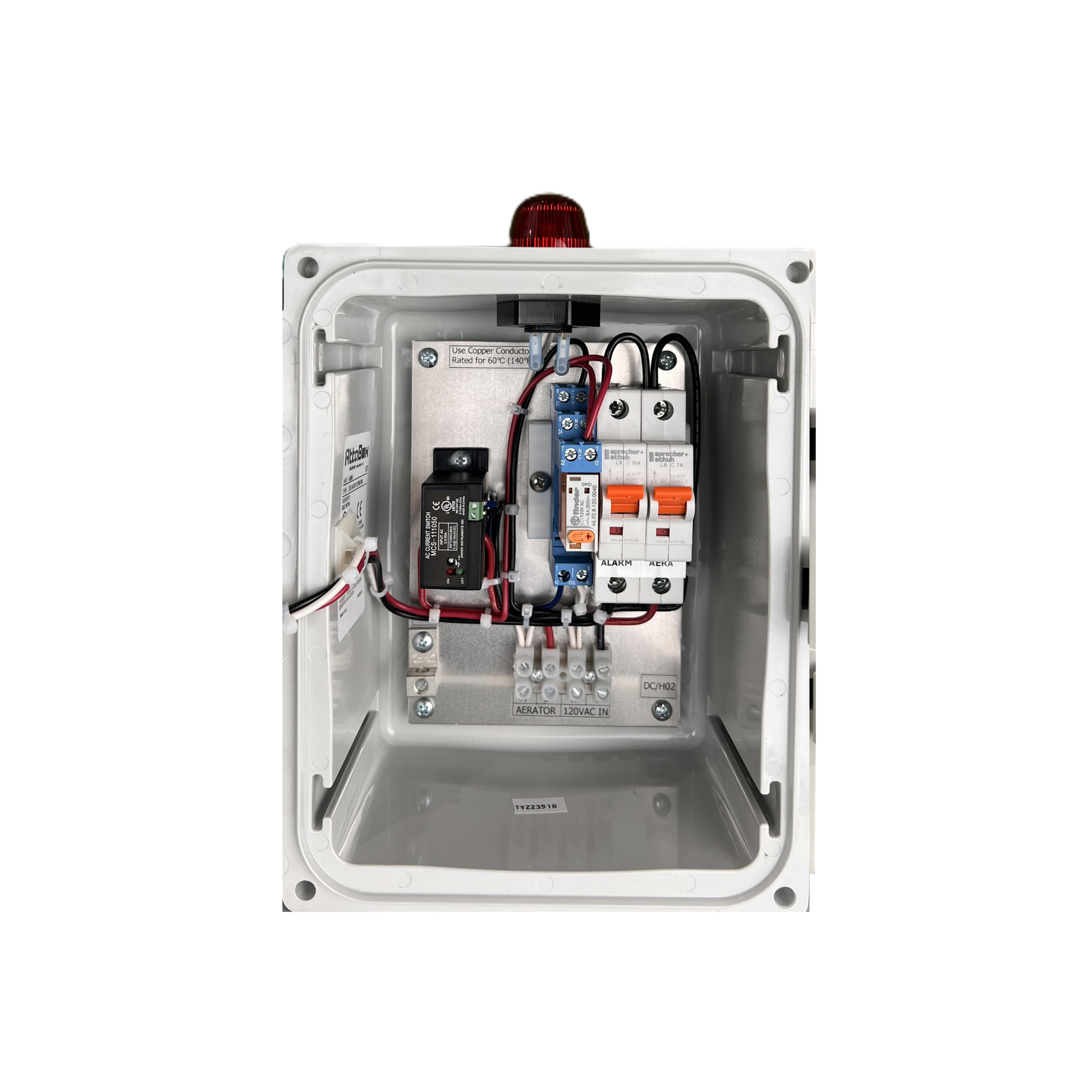

RJR Controls JAOCS Control Panel

The JAOCS by RJR Controls is a control panel designed to operate a 120V shaft aerator continuously. It features a 7 Amp aerator circuit breaker, a 10 Amp alarm circuit breaker, and a current switch to monitor aerator operation. The panel includes a high-water alarm with a solid red light and buzzer, and alarm test and mute switches for convenient system management.

• PUMP – 120 VAC – 20 Amp circuit breaker – Demand Operation.
• AERATOR – 120 VAC – 20 Amp circuit breaker – Linear or Rotary.
• ALARM – Single solid red light for high water or aerator. High Water Alarm will use a N/O alarm float. Aerator alarm will use a 1⁄2# pressure switch.
• Alarm Test – Mute – Run switch and Pump Test switch included.
• UL listed 4X Enclosure H x W x D = 10” x 8” x 4”
