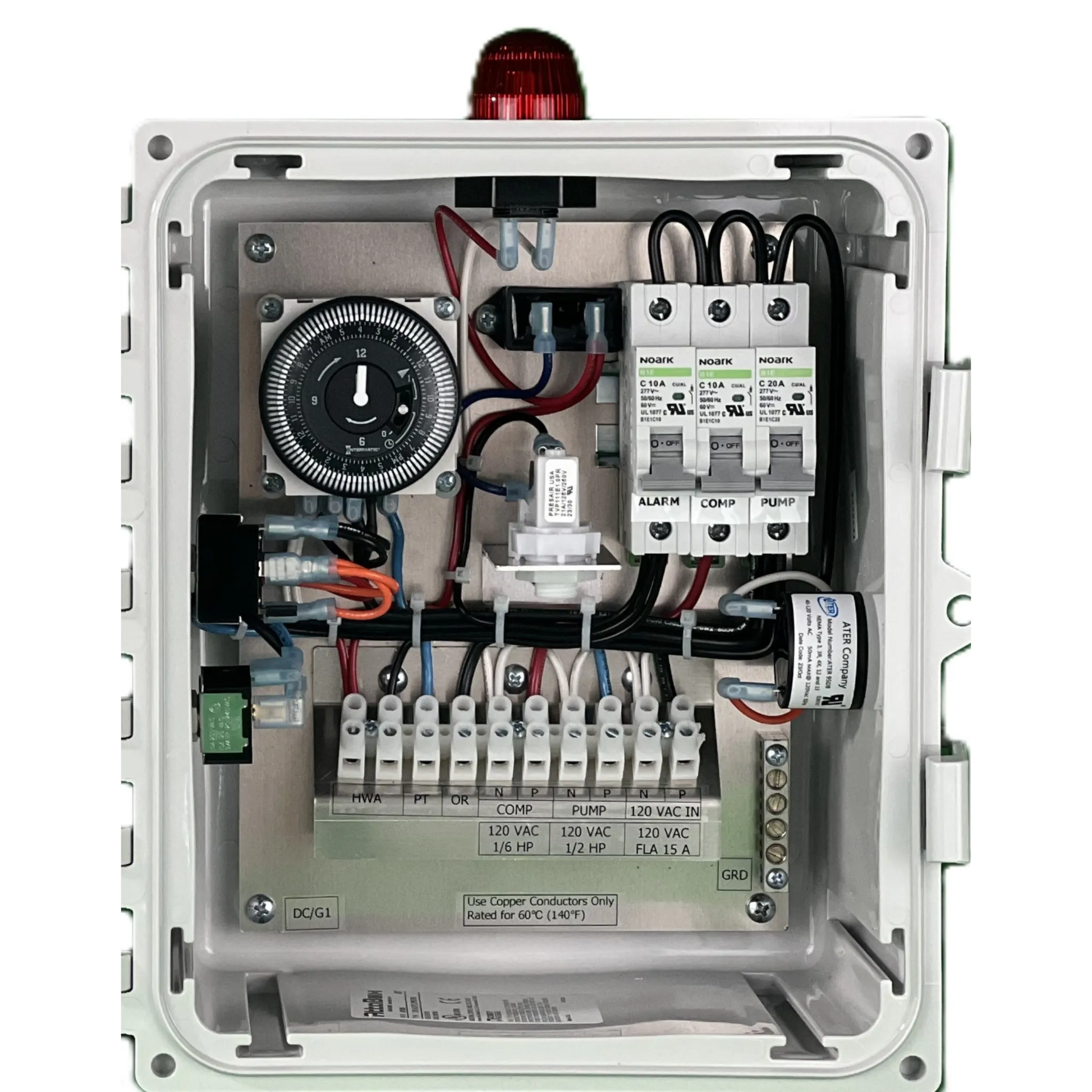

RJR Controls E4L Control Panel

The E4L by RJR Controls is an aerobic control panel designed to operate a 120V effluent pump and a 120V linear or rotary air compressor. It features a Grasslin FM1STUZ 15-minute pin clock timer, dual high-water alarms (solid red for high water and flashing red for aerator), and includes alarm test, mute, and pump test switches for convenient system management.

• PUMP – 120 VAC – 20 Amp circuit breaker.
• TIMER – Grasslin FM1STUZ 15 minute pin clock timer.
• AERATOR – 120 VAC – 20 Amp circuit breaker – Linear or Rotary.
• ALARM – Solid red light for high water and flashing red light for
aerator. High Water Alarm will use a N/O alarm float. Aerator alarm
will use a 1⁄2# pressure switch.
• Alarm Test-Mute-Run switch and Pump Test switch included.
• UL listed 4X Enclosure H x W x D = 10” x 8” x 4”
