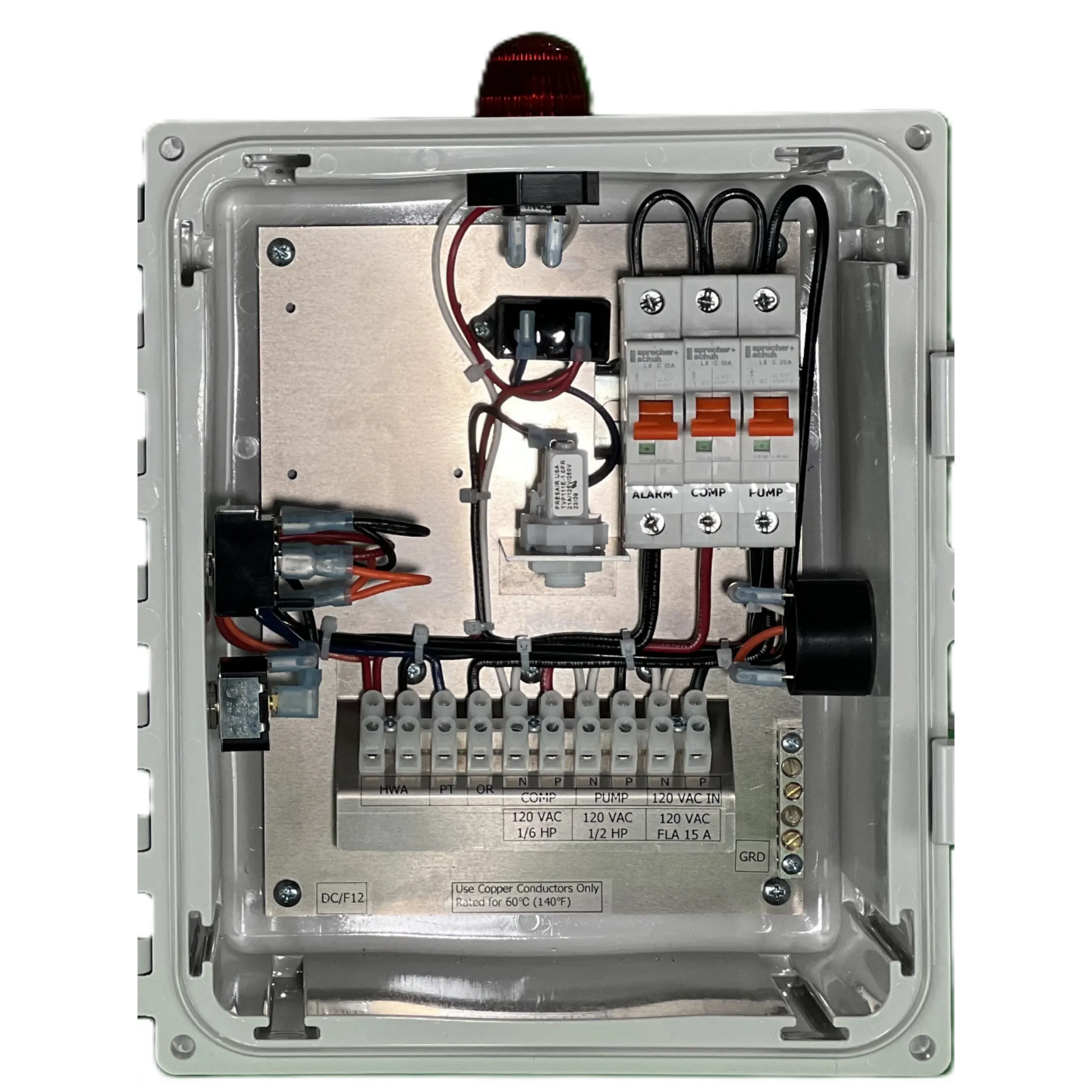

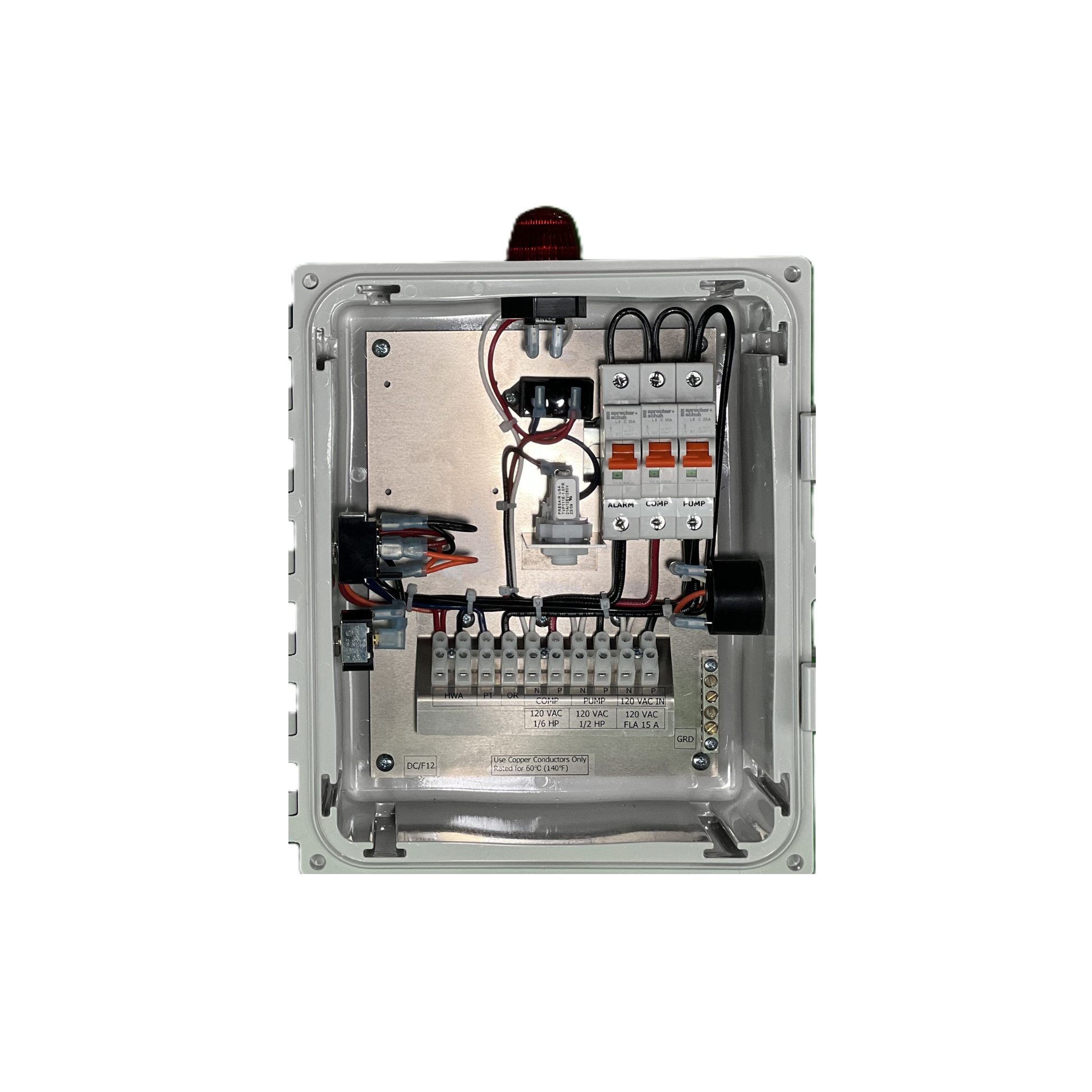

RJR Controls E3L Control Panel

The E3L by RJR Controls is an aerobic control panel designed to operate a 120V effluent pump and a 120V linear or rotary air compressor. It features demand operation with a pump-duty wide-angle float, a 1 PSI pressure switch for aerator monitoring, and dual high-water alarms: a solid red light for high water and a flashing red light for aerator issues. The panel includes alarm test, mute, and pump test switches for convenient system management.

• PUMP – 120 VAC – 20 Amp circuit breaker – Demand Operation.
• AERATOR – 120 VAC – 20 Amp circuit breaker – Linear or Rotary.
• ALARM – Solid red light for high water and flashing red light for aerator. High Water Alarm will use a N/O alarm float. Aerator alarm will use a 1⁄2# pressure switch.
• Alarm Test-Mute-Run switch and Pump Test switch included.
• UL listed 4X Enclosure H x W x D = 10” x 8” x 4”
