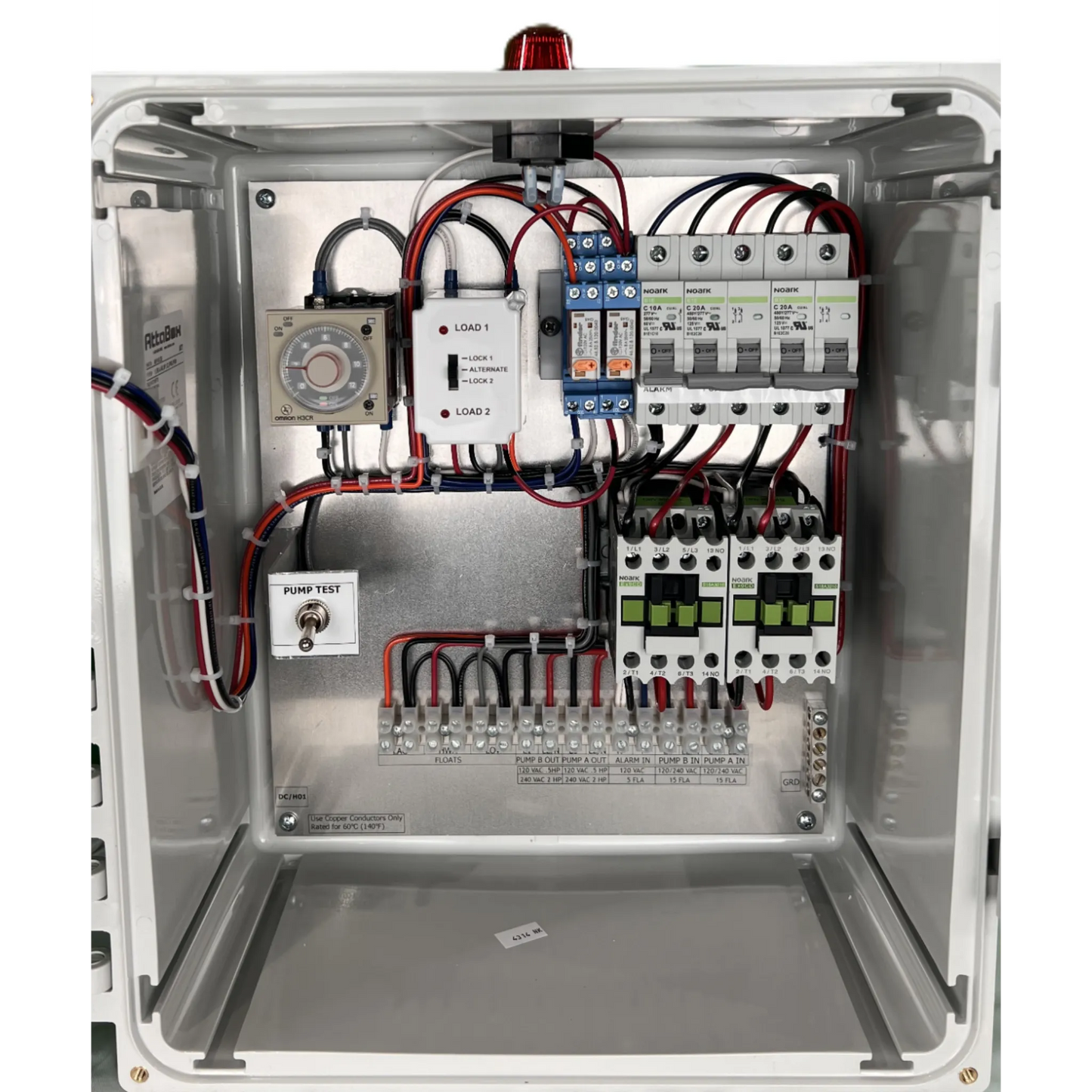

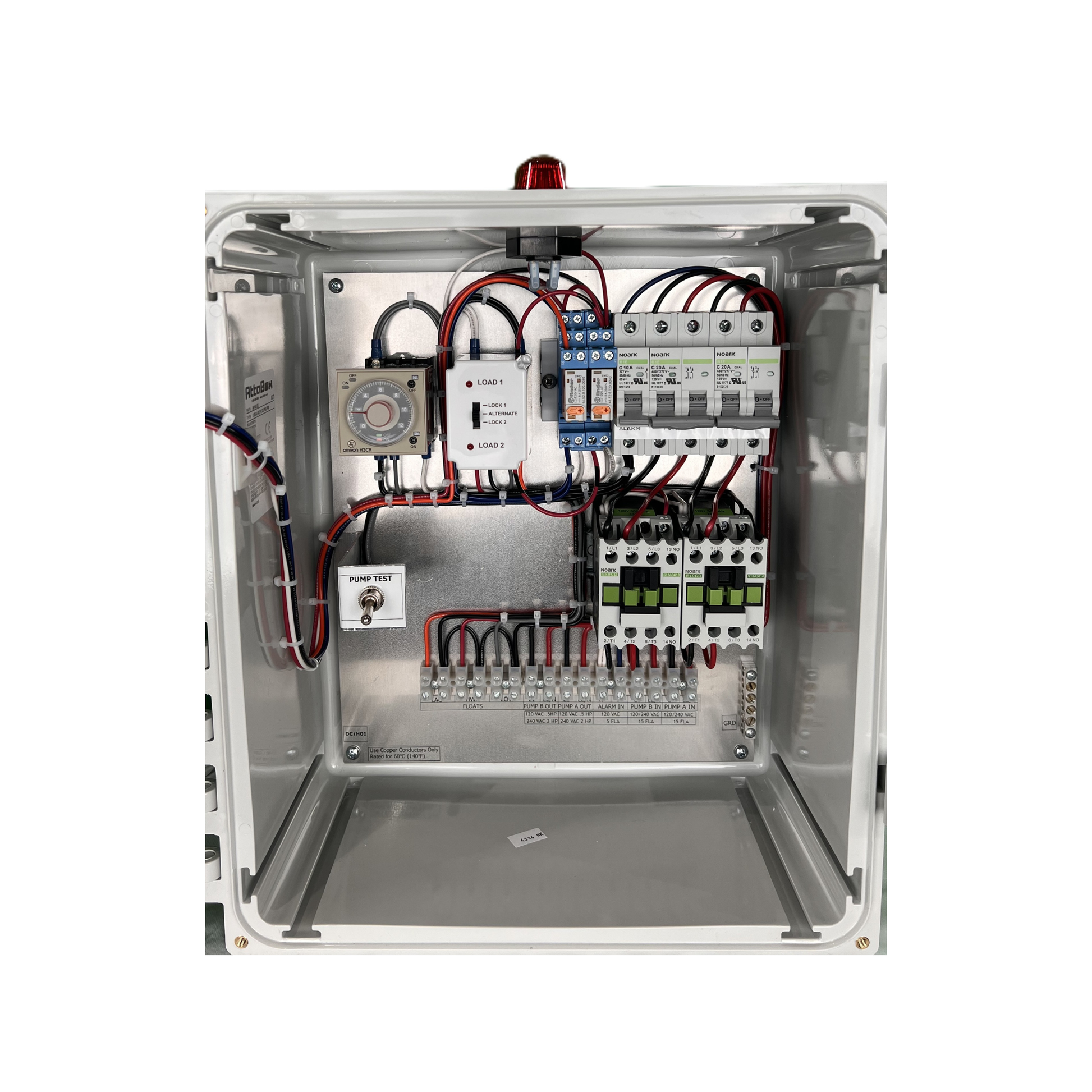

RJR Controls ALTD2HPDV Control Panel

The ALTDM2HPDV by RJR Controls is a duplex control panel designed for 120/240V systems. It features alternating pump operation, float-based activation, and a latching high-water alarm for reliable system protection.

• PUMP – Two 120/240 VAC – 20 Amp 2 Pole circuit breakers.
• TIMER – Omron H3CRF8 repeat cycle timer.
• ALTERNATING RELAY – Switches pumps after each pump cycle. Load selector switch allows load to be locked to either pump, or alternate between the two.
• FLOATS – ON/Pump Start, OFF/Pump Stop, HWA, LAG/Demand secondary pump on and off. All floats are N/O.
• ALARM – Solid red light for high water. This control is equipped with a latching alarm. The control will remain in alarm state even if the water level returns to normal level. The alarm must be manually reset.
• Alarm Test-Mute switch and Pump Test switch included.
• UL listed 4X Enclosure H x W x D = 16” x 14” x 6”
