RJR Controls ALT-DT-LA Control Panel

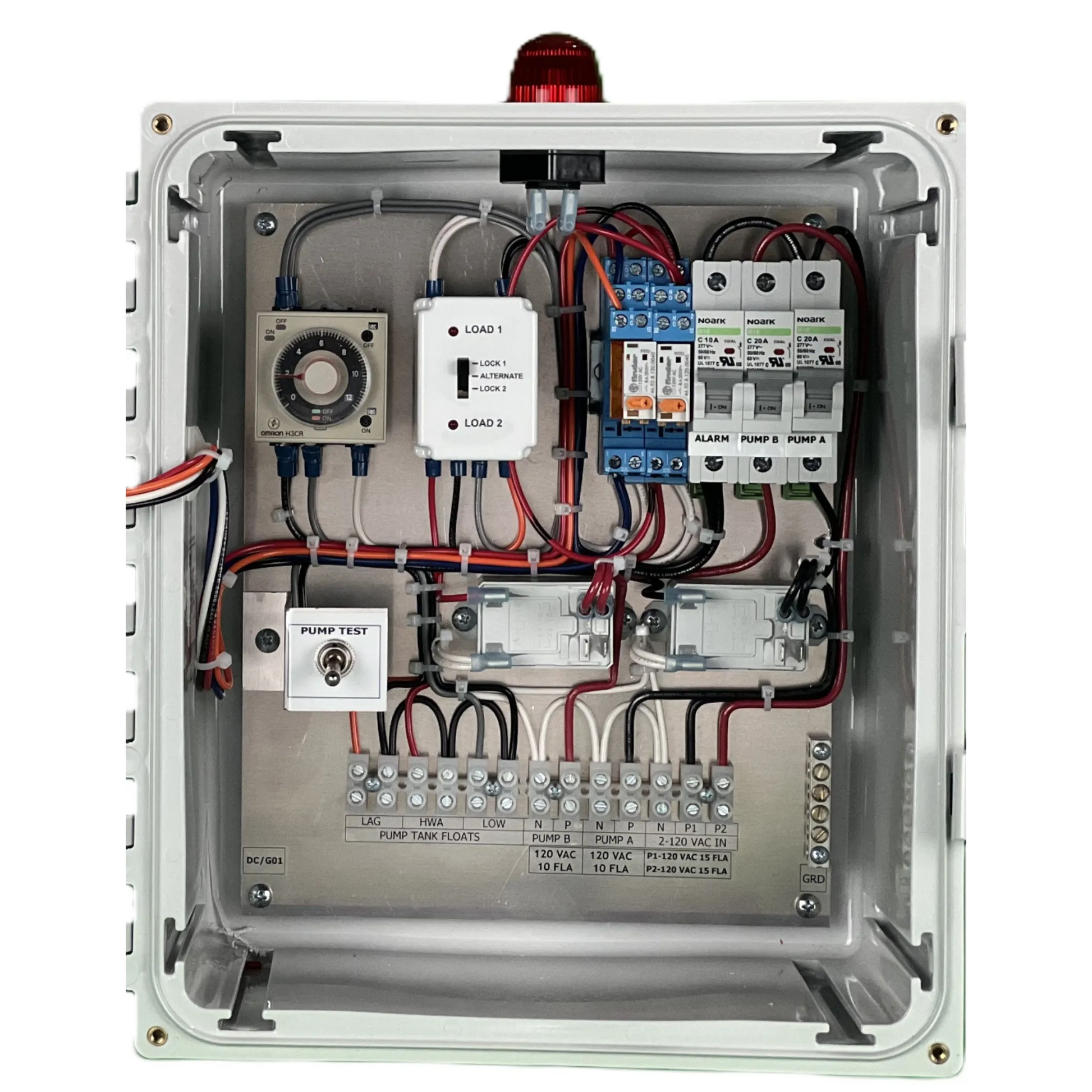

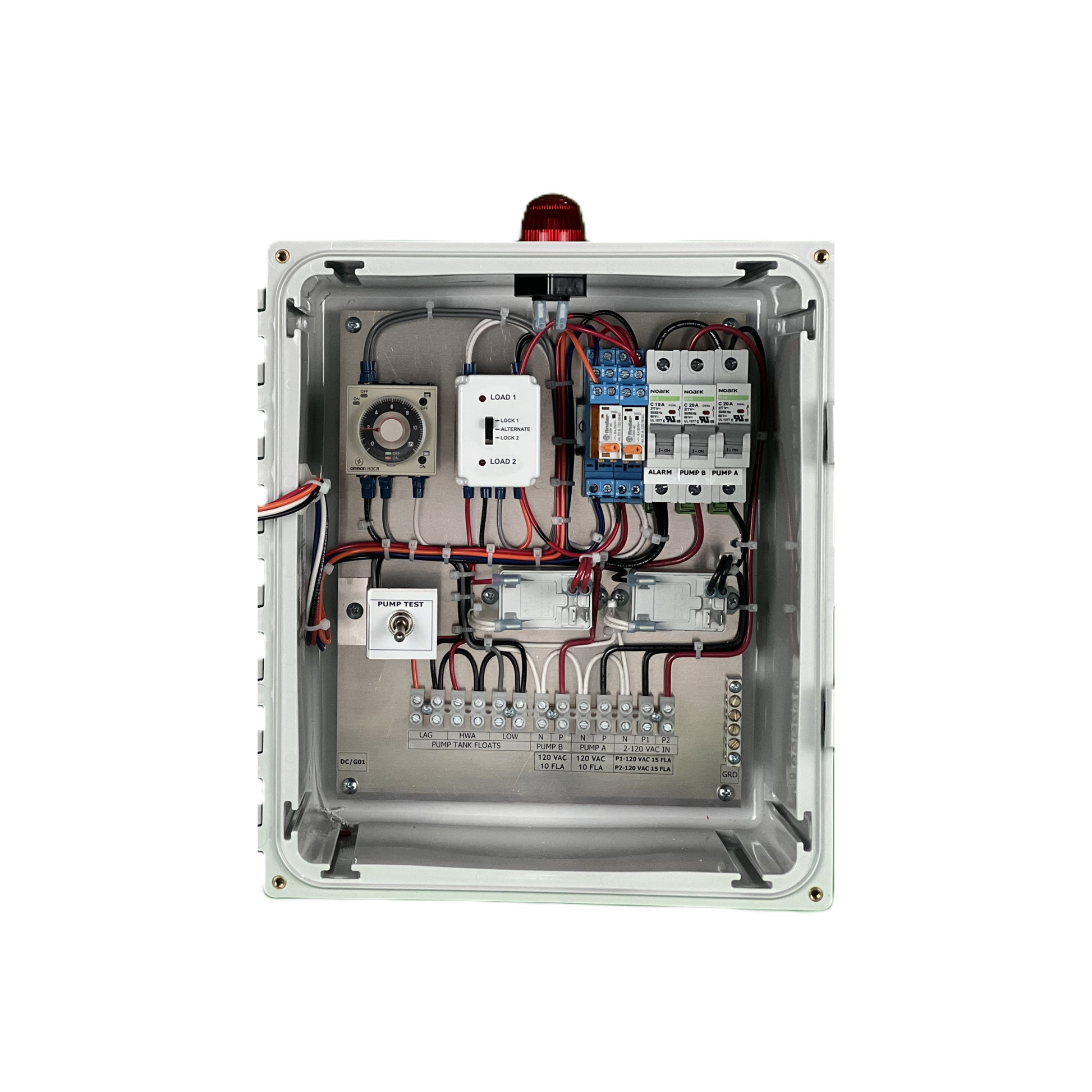

The ALT-DT-LA by RJR Controls is a duplex dosing timer control panel designed for 120V systems. It features an Omron H3CRF8 repeat cycle timer, alternating relay, and a latching high-water alarm for reliable septic operation.

• PUMP – Two 120 VAC – 20 Amp circuit breakers.
• TIMER – Omron H3CRF8 repeat cycle timer.
• ALTERNATING RELAY – Switches pumps after each pump cycle. Load selector switch allows load to be locked to either pump, or alternate between the two.
• FLOATS – Low/Pump Start Stop, HWA, LAG/Demand secondary pump on and off. All floats are N/O.
• ALARM – Solid red light for high water. This control is equipped with a latching alarm. The control will remain in alarm state even if the water level returns to normal level. The alarm must be manually reset.
• Alarm Test-Mute-Run switch and Pump Test switch included.
• UL listed 4X Enclosure H x W x D = 12” x 10” x 6”
