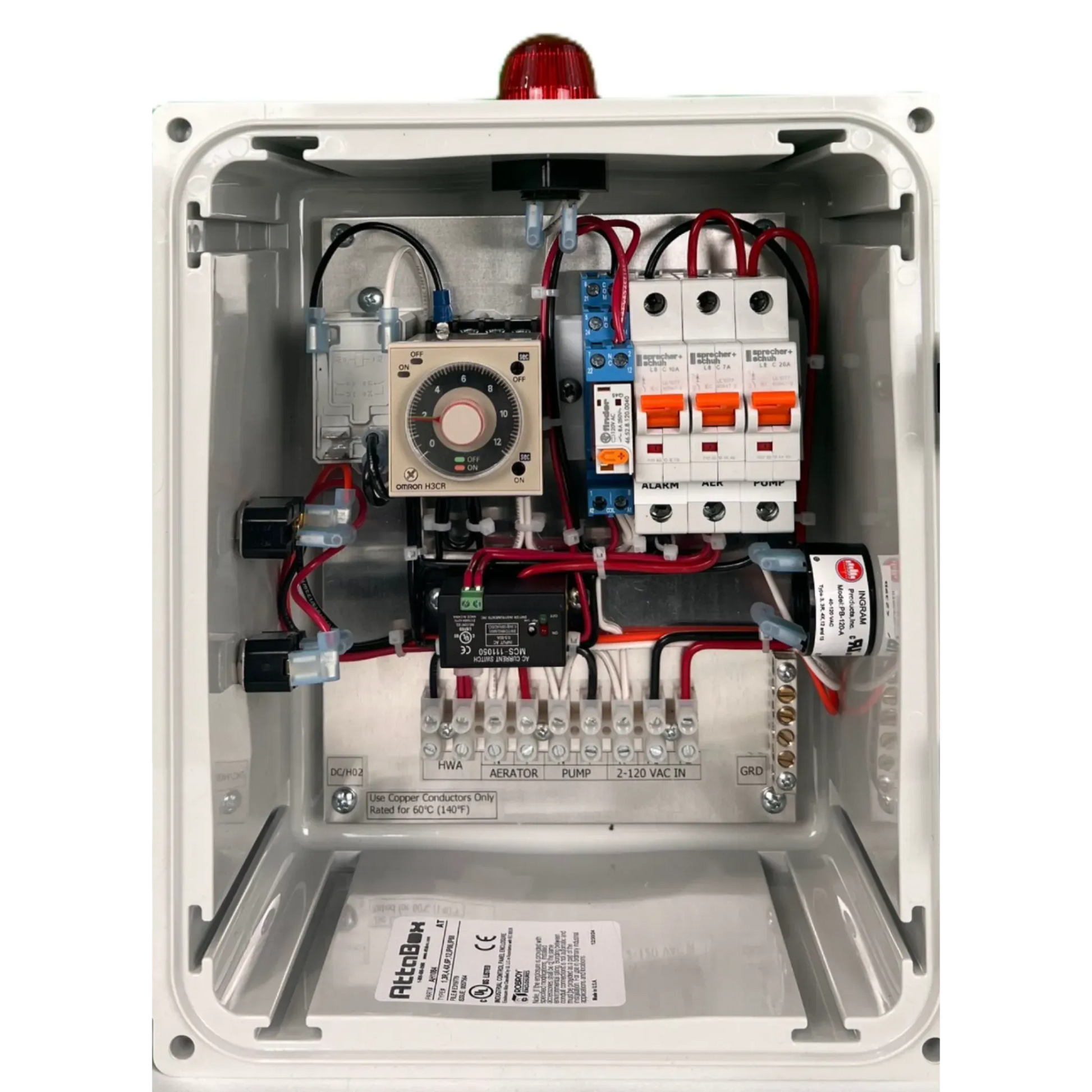

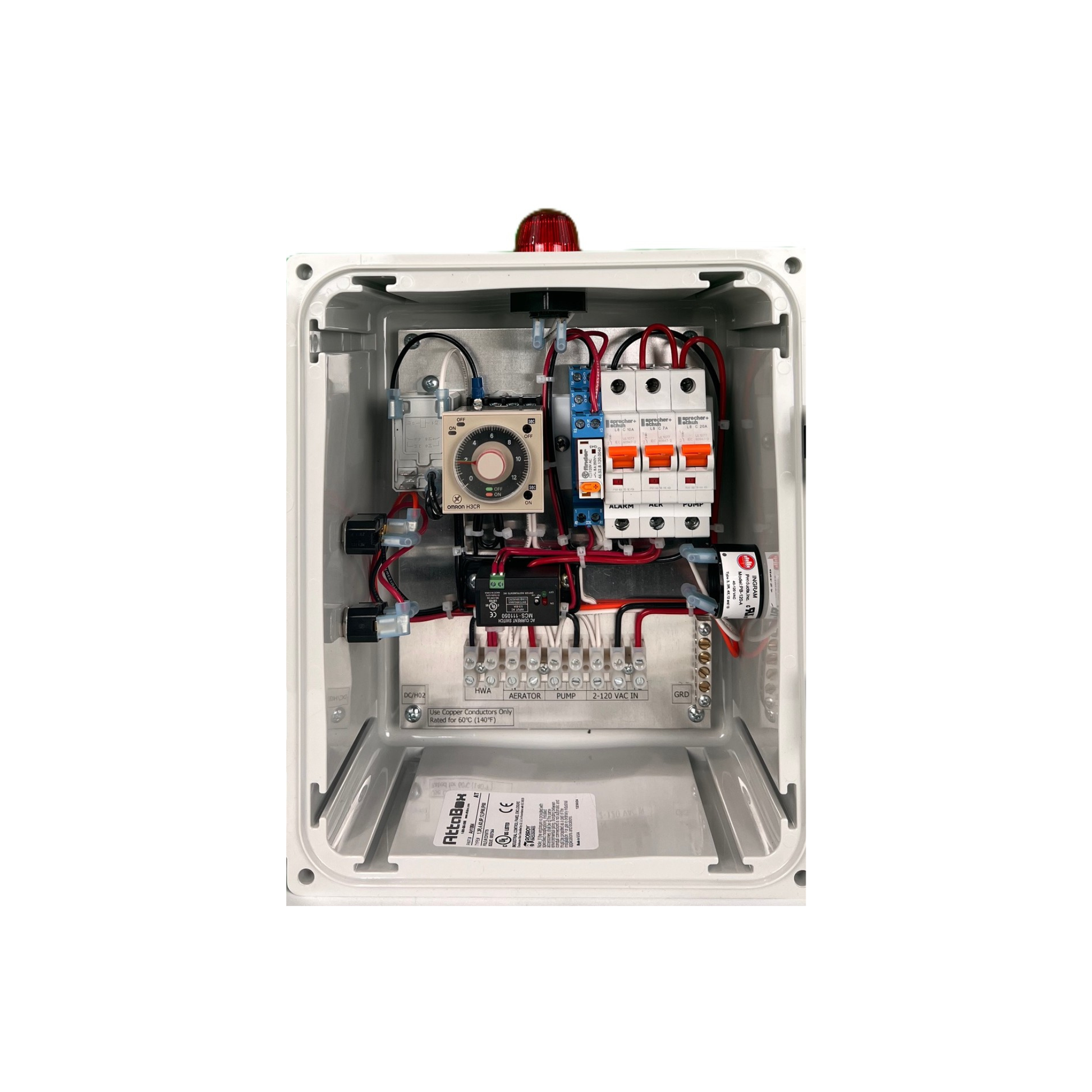

The ACP‑DJCS by RJR Controls is a control panel for 120 VAC shaft‑style aerobic systems. It powers both a pump (via repeat‑cycle timer) and aerator (continuous), includes high‑water and aerator alarms using a current switch, and offers alarm test/mute controls for reliable and safe operation. It’s housed in a UL 4X rated enclosure for durability.
• PUMP – 120 VAC – 20 Amp circuit Breaker. • TIMER – Omron H3CRF8 repeat cycle timer. • AERATOR – 120 VAC – 7 Amp circuit breaker – Shaft Style. • ALARM – Single solid red light for high water or aerator. High Water Alarm will use a N/O alarm float. Aerator alarm will use a current switch. • Alarm Test-Mute switch included. • UL listed 4X Enclosure Enclosure H x W x D = 10 x 8 x 4”
