RJR Controls ACP-CJCS Control Panel

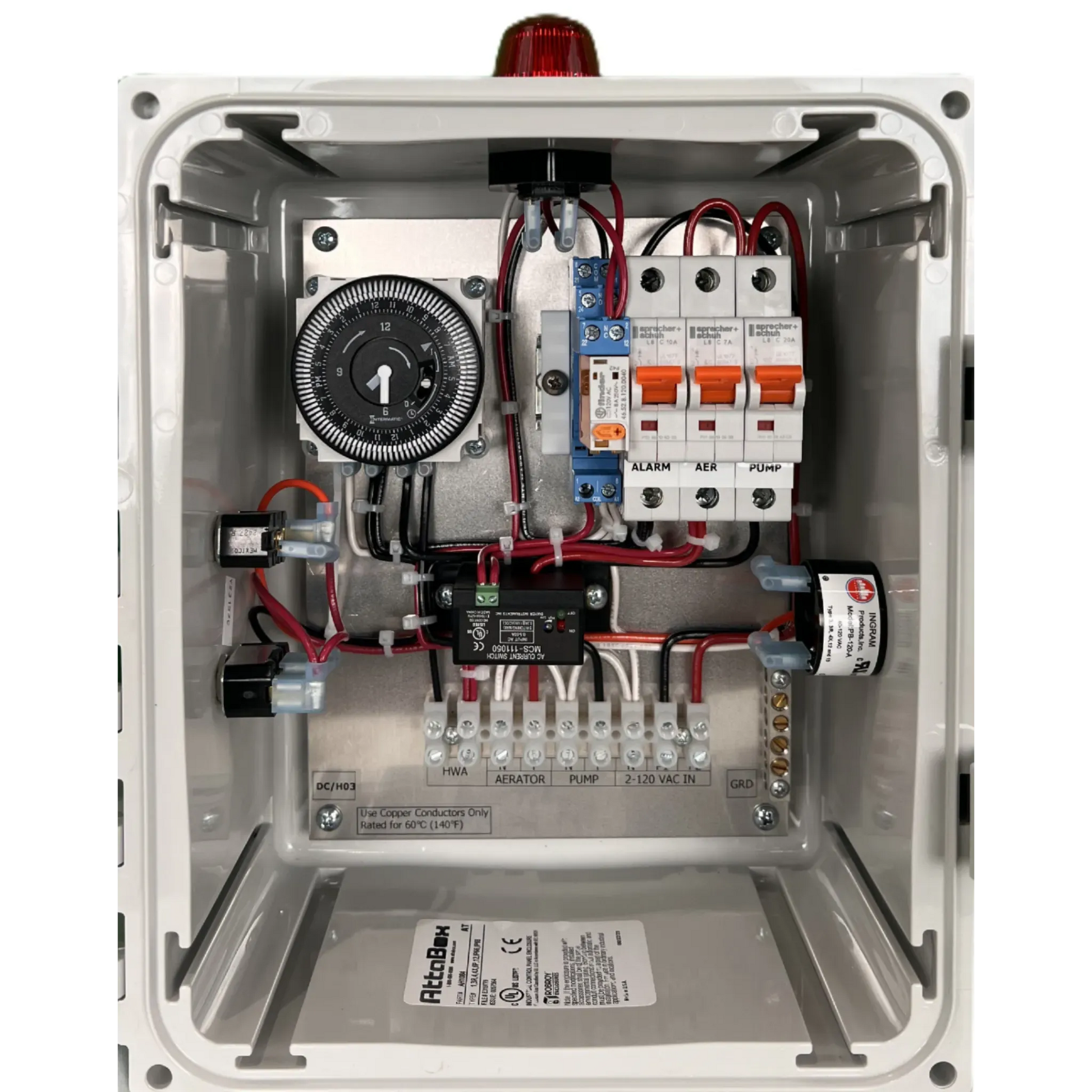

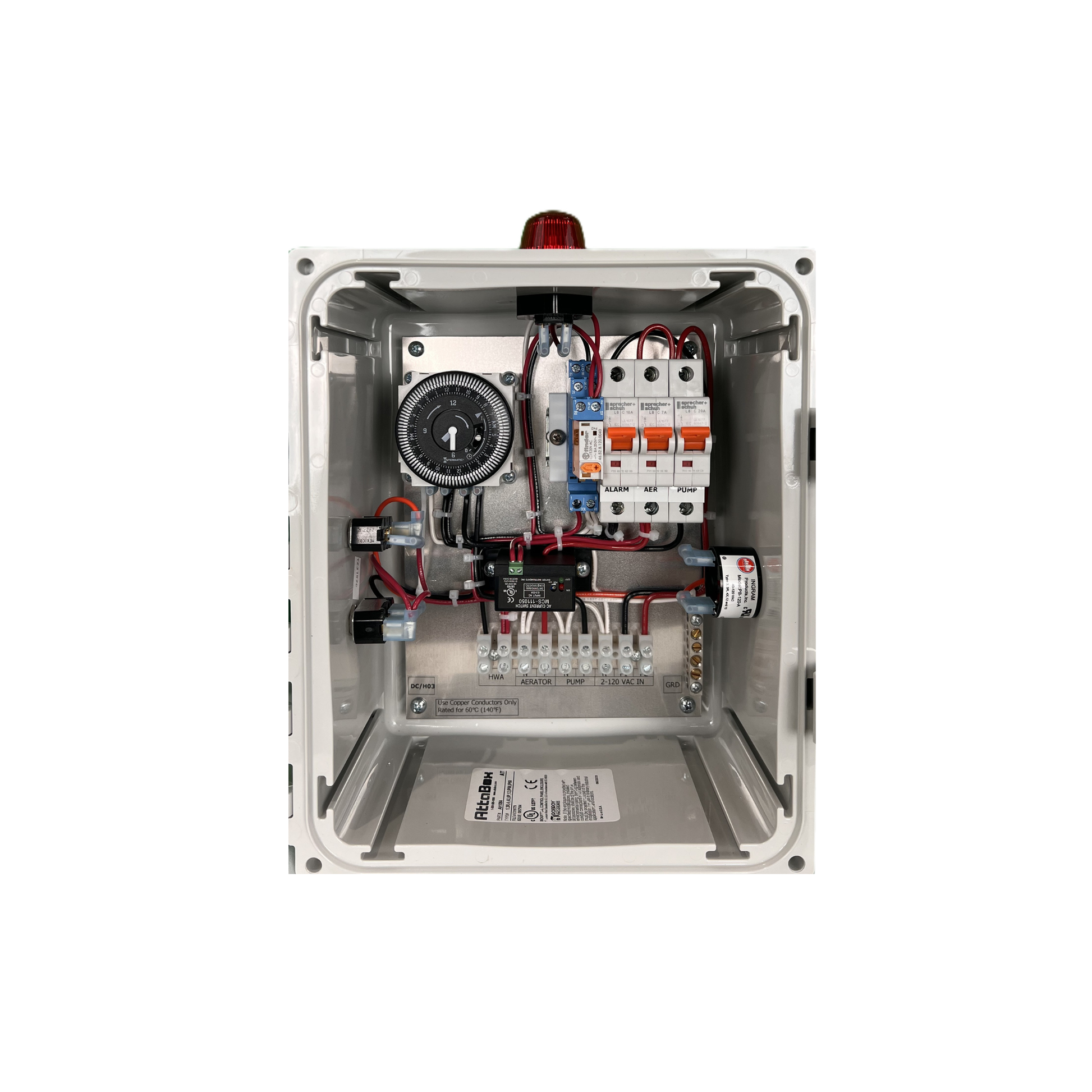

The ACP-CJCS by RJR Controls is a 120V control panel designed to operate a shaft-style aerator and an effluent pump. It features a Grasslin 15-minute pin clock timer, a 7 Amp aerator circuit breaker, and a 20 Amp pump circuit breaker. The panel includes a high-water/aerator alarm with a solid red light, alarm test, and mute switches, all housed in a UL-listed 4X polycarbonate enclosure.

• PUMP – 120 VAC – 20 Amp circuit Breaker.
• TIMER – Grasslin FM1STUZ 15 minute pin clock timer.
• AERATOR – 120 VAC – 7 Amp circuit breaker – Shaft Style.
• ALARM – Single solid red light for high water or aerator. High Water Alarm will use a N/O alarm float. Aerator alarm will use a current switch.
• Alarm Test-Mute switch included.
• UL listed 4X Enclosure H x W x D = 10 x 8 x 4”
